Object Markers

Wenzel Cade Reflectors

Wenzel Cade Reflector Markers™ are made in Austin, Texas with high impact Acrylite SG Acrylic Plastic and 3M™ sheeting.
All of our markers were tested and certified by TxDOT materials and tests. They are also on the TxDOT approved product list. DMS-8600.
Custom orders upon request. Please contact us for pricing.

Model 800

Features:

  • Reflective panel that complies with Texas Department of Transportation's specification as a substitute for type C Light attachments
  • Mounts to most channelizers with common hardware
  • Made of flexible ultraviolet stabilized sign grade acrylic plastic
  • Smooth, high-gloss surface sheds dirt, dust and water for long-lived reflectivity
    • Wenzel Cade Reflectors, Model 800, Silver and Amber
  • 3M™ Diamond grade reflective sheeting
  • Colors: Amber or Silver
  • Sheeting on both sides
  • Panel-white color for greater visibility
  • Easy to install
  • Pre-drilled hole for quick mounting
  • Field proven for durability
  • Overall size of unit: 6 9/16" width X 8 1/2" height X 1/8" thick
  • Sheeting 5" height X 6" width

Model 750

Butterfly High Impact Flexible Guardrail Reflectors

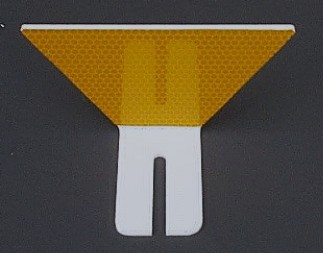

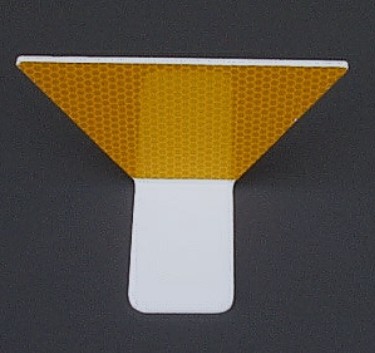

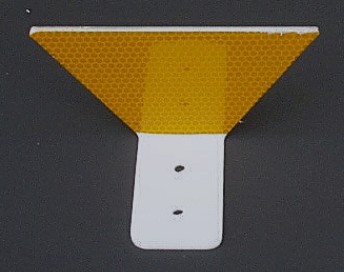

Wenzel Cade Reflectors, Model 750, Type I Base, Amber Wenzel Cade Reflectors, Model 750, Type II Base, Amber Wenzel Cade Reflectors, Model 750, Type III Base, Amber

Type I Base, plain | Type II Base, with holes | Type III Base, with slot


Features:
  • Fits all W-Beam
  • Mounts with adhesive or bolts
  • Ultraviolet stabilized sign grade acrylic plastic
  • More resilient than steel
  • Three different bases
  • Smooth, High-gloss surface sheds dirt, dust and water for long-lived reflectivity.
  • Available in either Amber or Silver reflective sheeting applied to one side
    or both sides.
    • One side Amber P/N: Model 750-A
    • One side Silver P/N: Model 750-S
    • Two sides Amber P/N: Model 750-A+A
    • Two sides Silver P/N: Model 750-S+S
    • One side Amber, One side Silver P/N: Model 750-A+S
  • To indicate base type add to end of P/N:
    • With holes: +H
    • With slot: +SL
    • Plain: +P

Sheeting Delineators

Sheeting delineators, models 752, 753, 755

Model 752

Size: 2 3/4" X 2 3/4" with center mounting hole, 3M™ Diamond Grade reflective sheeting

Model 753

Size: 4" X 4" with center mounting hole, and 3M™ High Intensity reflective sheeting

Model 755

Size: 6" X 12" with four mounting holes and 3M™ High Intensity reflective sheeting

Features:

  • U.V. - stabilized sign grade acrylic plastic
  • More resilient than other materials
  • Safer - If hit by cyclist, motorcycle rider or person
  • Available in either Amber or Silver reflective sheeting
  • Smooth, High-gloss surface sheds dirt, dust and water for long-lived reflectivity
Other object markers available - left and right markers, 18" X 18" marker, red end of road and others.

Barrier Delineators

Model 751

Barrier delineator, model 751

Size: B (4 3/16 " width X 3 3/16" height) (Base 4 3/16" width X 2")

Model 754

Barrier delineator, model 754 Barrier delineator, model 754

Size: A (3 9/16" width X 3 1/2" height) (Base 3 9/16" width X 2")
Features:

  • Mounts with adhesive or bolts
  • U.V. - stabilized sign grade acrylic plastic
  • More resilient than other materials
  • Available in either Amber or Silver reflective sheeting applied to one side or both sides
  • High Intensity and 3M™ reflective sheeting
  • Smooth, High-gloss surface sheds dirt, dust and water for long-lived reflectivity
